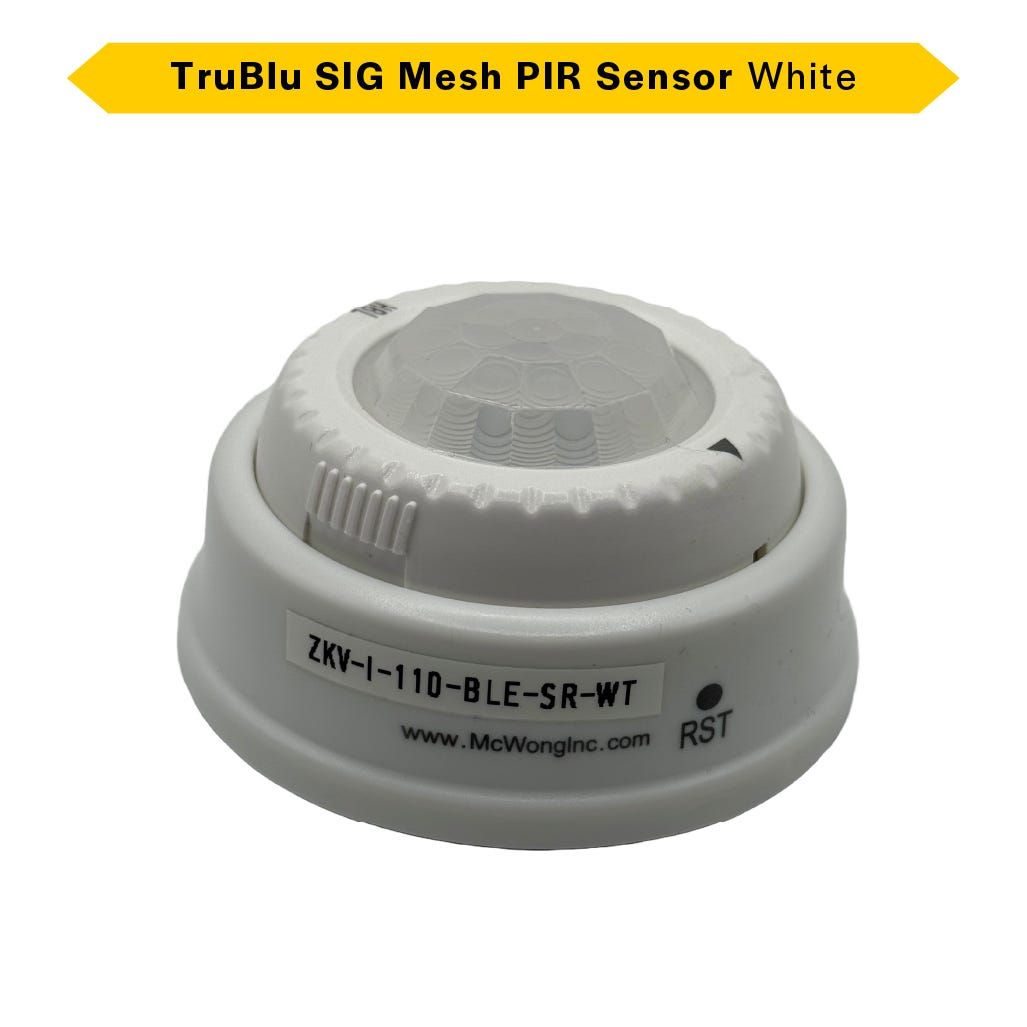

TruBlu SIG Mesh Fixture Sensor Controller for High/Low Bay Z-10 White 12-24VDC Single Channel 0-10V Dimming Indoor/Outdoor with Photocell (for Highbay, Area & Floods)

The PSC-ZKV-I products are a series of 1-Channel Wireless Fixture Controllers and use PIR motion detection architecture and passive infrared (PIR) technology for improved detection coverage. Two different base versions are available for flexibility. The Z10 Base (-10 & -11) models have active high outputs for relay control. The controllers are IP65 rated for exterior use. They are suitable for a variety of indoor and outdoor applications in temperatures ranging from -40C to 70C. The –11 or –21 models also have an integral photo sensor. These devices are Bluetooth NLC certified and controlled wirelessly via Bluetooth Mesh technology allowing for wireless dimming of luminaires. The compact size allows for seamless integration to the fixture

• Bluetooth PIR Sensor/Controller for use Area Light & Highbays 8-40FT with Z10 Base
• Use as repeater for sensor on other fixtures & save cost
• 0-10V Dimming, 1-Channel, Integrated Photosensor, Zoning
• Has Photocell functionality -can't use with separate Photocell with Sensor
• Configurable using mwConnect TruBlu web Portal or iOS Phone App
