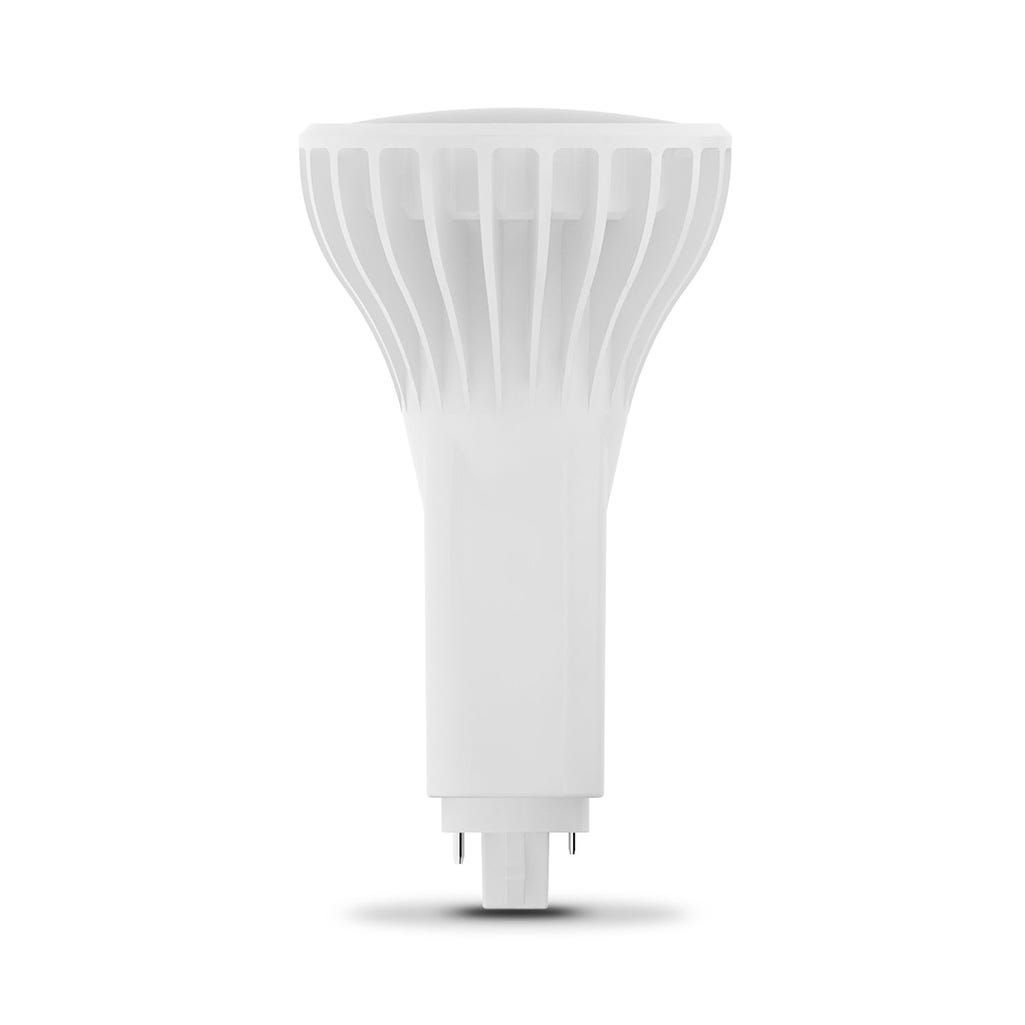

LED 4-Pin Plug-in 17W Vertical 3500K Ballast Compatible Type A Dimmable

Name: LED Direct Plug-in Vertical
Brand: Halco
SKU: PLT17V-835-BCO-4P-LED-D
Availability: InStock

Store / LED Lamps / LED Plug-in CFL and Linear Replacements / LED CFL Replacement Plug-ins

$0.00

In stock

Product Details

UPC: 807154821532

Brand: Halco

LED 4-Pin Plug-in 17W Vertical 3500K Ballast Compatible Type A Dimmable

The LED plug in family offers a full line of products to meet the needs of any application. Halco's plug in line offers color selectable, hybrid, high lumen output (vertical or horizontal), and omni-directional options that are available in a variety of color temperatures and lumen output ranges. These efficient, versatile, and long lasting LED plug in lamps are the perfect replacement option for fluorescent double or triple biax products that are still heavily used through the market

Which SKUs are dimmable? The 4-pin SKUs, while in Type A (BCO â€“ Ballast Compatible) installations, can dim in combination with dimming fluorescent ballasts.
Which SKUs can be used in both Type A and Type B (Hybrid) applications? Any SKU with â€œHYBEâ€ or â€œHYBMâ€ in the product code are hybrid capable. HYBM lamps are compatible with magnetic ballasts and HYBE with electronic ballasts.
Can I use the 2pin lamps in a 4pin socket? A 2-pin lamp can be used in a 4pin socket while operating without a ballast (Type B).

Fluorescent Triple Biax Replacement
Type A - Ballast Compatible
Horizontal lamp base rotates for proper orientation in luminaire
Fits G24q and GX24q Sockets
50,000 hour life resulting in lower maintenance costs over time

Resources:

Specifications:

Wattage: 17W
Lumens: 1900
Efficacy: 112LPW
Color Temperature: 3500K
CRI: 82
Voltage: 120-277V
Dimmable: Yes Type A Mode
Beam Angle: 120
Base Type: G24Q
Bulb Type: PLT
Finish: White
Housing Material: Polycarbonate White Plastic and Aluminum
Lens Material: Frosted Plastic
Environment Rating: Damp
IP Rating: IP20
Average Life: 50000 hrs
Warranty: 5 years
Certifications: UL Listed IP20 Damp Location Rated DLC 5.1 Standard Rohs Compliant FCC
Country of Origin: China
UPC: 807154821532
UNSPSC: 39101600
