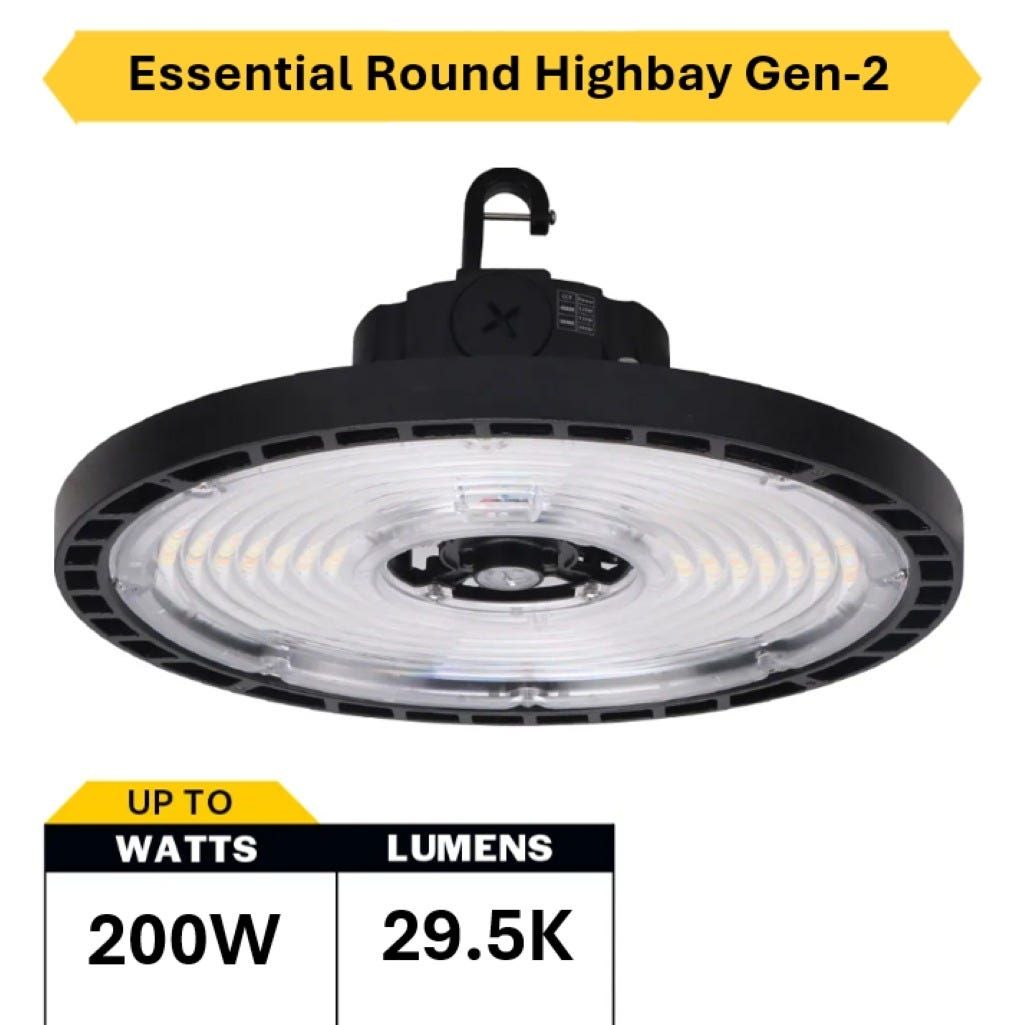

Essential Round Highbay (Gen-2) Controls Ready 3.5mm Jack Lumen Select 19,600-23,100-29,500 (120W-150W-200W), Color Select 4000K or 5000K, 120-277VAC, 0-10V Dimming, Black

Name: Essential Round Highbay
Brand: Halco
SKU: ERHB-3-LS-CS-U
Availability: InStock

Store / Indoor Fixtures / Highbay Lighting / Round High Bays

$0.00

In stock

Product Details

UPC: 807154373123

Brand: Halco

Essential Round Highbay (Gen-2) Controls Ready 3.5mm Jack Lumen Select 19,600-23,100-29,500 (120W-150W-200W), Color Select 4000K or 5000K, 120-277VAC, 0-10V Dimming, Black

The Essential Round High Bay delivers an ideal balance of performance and value for applications such as warehouses, gymnasiums, big box retail, and showrooms. Engineered with high lumen efficacy, field-selectable lumen output and CCT. It adapts easily to diverse project needs while ensuring long service life. Its powder-coated die-cast aluminum housing and durable polycarbonate lens, combined with an IP65 wet location rating, provide reliable operation in demanding environments. Installation is simplified with a 6' cord and Â½" NPT steel hook. Optional surface-mount U-bracket and pendant adapter offer maximum versatility and ease of use.

Die Cast Aluminum with Black Powder Coat Finish
Polycarbonate Lens & 6KVA Surge Protection
Accessory Kit for Field Installable High Voltage Driver
Battery Backup Accessory (40W, 90-min backup)
1/2" Steel Hook & 6' Cord (other mounts sold as accessories)/li>
Built in 3.5mm Receptacle for Motion Sensors

Resources:

Specifications:

Wattage: Selectable 120W, 150W or 200W
Lumens: Selectable 19600-23100-29500
Efficacy: 150LPW
Color Temperature: Selectable 4000K or 5000K
CRI: 80
Voltage: 120-277V
Dimmable: Yes (0-10V)
Beam Angle: 90 Degree
Finish: Black
Housing Material: Die-cast Aluminum with Powder Coated Finish and Captive Screws
Lens Material: Polycarbonate Lens
Mount Options: Hang using 1/2" Hook (included), Ceiling Mount (U-Bracket sold separately), 1/2" NPT Pipe (Need U-Bracket sold separately). If needed a 3/4" to 1/2" Pendant Adapter, J-Box (1/2" bottom/3/4" top) & 3/4" Hook sold as accessories.
Environment Rating: Wet Location
IP Rating: IP65
Average Life: 100000 hrs
Warranty: 5 years
Certifications: UL Listed - DLC 5.1 Premium - IP65 Wet Location - FCC - Rohs
Country of Origin: Vietnam
UPC: 807154373123
UNSPSC: 39111500

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.
