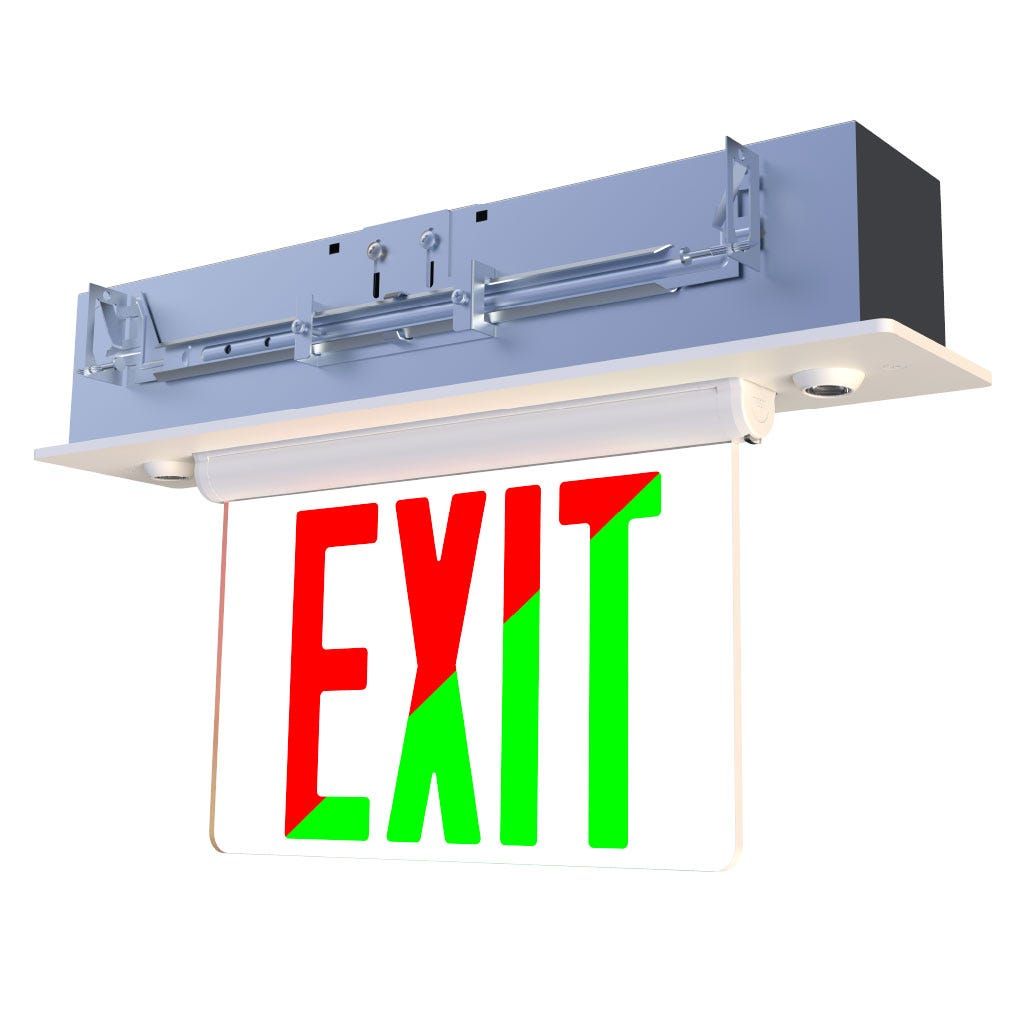

Emergence Series, Thermoplastic and Acrylic Edgelit Combo, Selectable Red/Green Legend, Selectable Single/Double Rotating Face, White Housing, Selectable Manual or Self-Diagnostics, Recessed Mounting

Name: Edgelit Exit / EM Combo Red/Green
Brand: Halco
SKU: EMG-EDGC-PL-RG
Availability: InStock

Store / Exit & Emergency / Exit Sign Combos

$0.00

In stock

Product Details

UPC: 807154971381

Brand: Halco

Emergence Series, Thermoplastic and Acrylic Edgelit Combo, Selectable Red/Green Legend, Selectable Single/Double Rotating Face, White Housing, Selectable Manual or Self-Diagnostics, Recessed Mounting

The Emergence Series Thermoplastic Edgelit Combination Exit Sign / Emergency Unit offers a versatile code compliant solution for hallway, stairwell, and other Life Safety applications. The field-selectable red/green legend, field-selectable single/double face, field-selectable manual or self-test/self-diagnostics and recessed mounting includes field-selectable applique chevron indicators as well as universal input voltage to provide the most field configurable edgelit exit sign on the market. The pivoting housing design makes it ideal to mount on ceilings or walls in recessed mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss.

Field Selectable Red/Green Legend, Applique Chevrons, Single/Double Face & Manual/Self-test Mode
90-min Backup Battery (LiFePO4), Test Button & Charging Indicator, 24 Hour Recharge Time
Two EM rotating heads 480Lumen/1.5W total
Lens Injection Molded Thermoplastic White Housing - Pivoting Fully Illuminated 6" Legend
Recessed ceiling or wall mount and bar hangers included
Acrylic panel rotates from 0 to 180Deg (90Deg becomes a Wall Mount)
Tool-less Replaceable Acrylic Panel-Double-Face Mirror Insert Includedâ€‹

Resources:

Specifications:

Wattage: 1.5W
Lumens: 460
Color Temperature: Selectable Red or Green
Voltage: 120-277V
Dimmable: No
Finish: White with Gray Recessed Box
Housing Material: Pivoting Injection Molded Thermoplastic Face Plate with Galvanized Gray Recessed Box. Two Rotating LED lights in Face Plate.
Lens Material: Rotating Acrylic
Mount Options: Recessed Ceiling Mount and Wall (Acrylic Panel Rotated 90deg). Bar hangers Included.
Environment Rating: Damp
IP Rating: No
Average Life: 100000 hrs
Warranty: 2 years
Certifications: UL 924 Damp Location Listed - NFPA 101 - NFPA 70 - CEC T20
Country of Origin: CN
UPC: 807154971381
UNSPSC: 39111600
