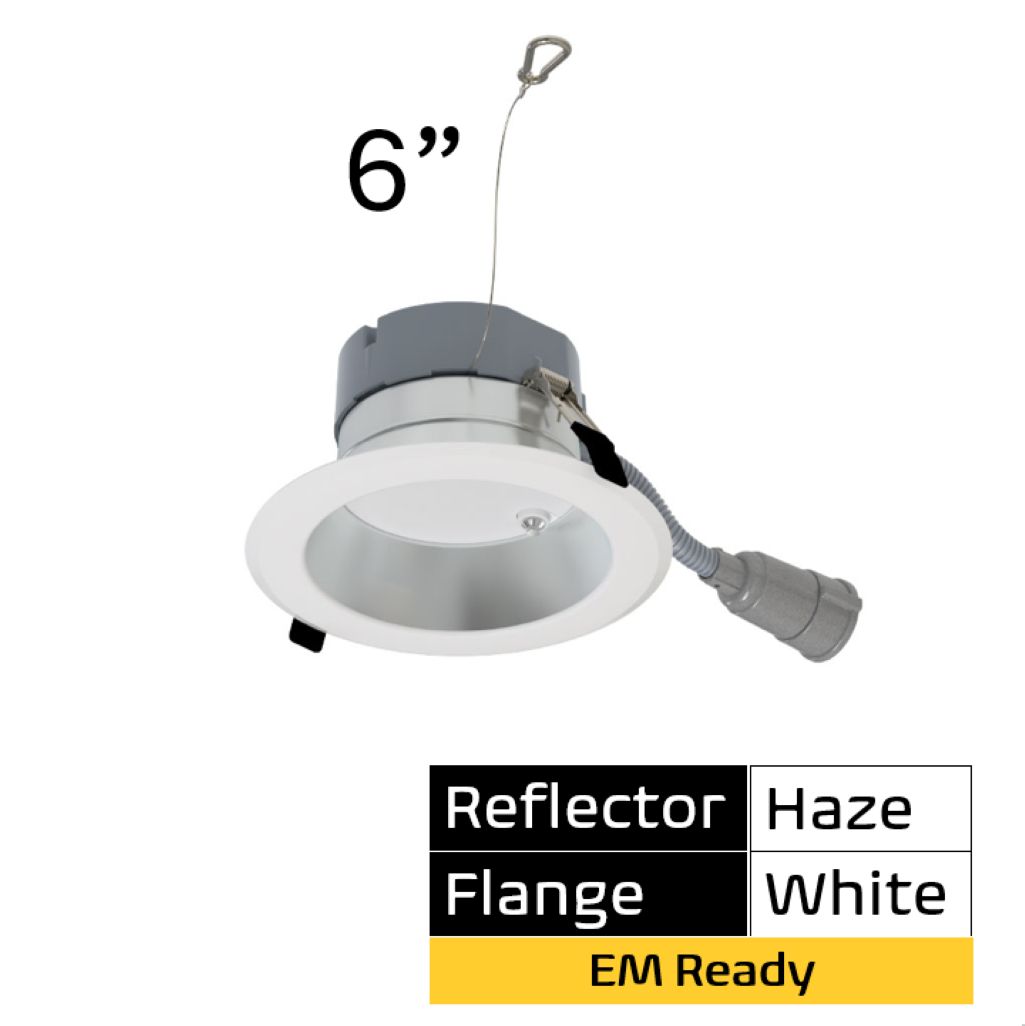

Commercial Retrofit Downlight, 6in, Emergency Battery Ready, Lumen and CCT Select, 120-277V, Dimmable TRIAC/ELV & 0-10V, Haze Reflector, White Flange

$0.00
In stock
Product Details
UPC: 807154892235
Brand: Halco

Commercial Retrofit Downlight, 6in, Emergency Battery Ready, Lumen and CCT Select, 120-277V, Dimmable TRIAC/ELV & 0-10V, Haze Reflector, White Flange

Halco's Retrofit Commercial Downlights are a quick, easy, and convenient way to reinvent commercial lighting spaces. Color temperatures and light output can be chosen before or after installation with the flip of a switch. There is no need to worry about what type of dimming is currently being used in the space as the integral fixture driver for the CDL Series can dim using either 0-10V or ELV/Triac phase cut protocols. When emergency lighting is needed, the CDLEM family offers an aesthetically pleasing integral emergency battery backup solution. The robust spring clips and quick connect metal clad cables makes installation of the fixture and battery backup a breeze and the low profile combination test switch and charging indicator light eliminate large, unsightly ceiling and fixture mounted buttons. White and Haze colored reflectors, combined with all the other fixture options of the CDL family complete the look and make your commercial retrofit lighting projects a success.
  • Quick Connect Emergency Battery Backup Ready - Product 89226 Sold Separately
  • Integrated Battery Test Button & Charging Indicator
  • Dual Dimming Universal 120-277V (0-10V) or 120V TRIAC/ELV
  • IP65, Wet Location, Energy Star, Title 24, FCC, ETL, Rohs
  • Lumen and Color Temp (5 CCT's) Selectable
  • Haze Reflector and White Flange/Trim
  • Mouse Trap Universal Steel Spring Clips
  • Can or Canless Installation

Resources:

Specifications:

  • Wattage: 11W, 18W or 22W
  • Lumens: Selectable 1000-1800-2500
  • Efficacy: 125LPM
  • Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K or 5000K
  • CRI: 90
  • Voltage: 120-277V
  • Dimmable: Yes (Triac/ELV or 0-10V)
  • Beam Angle: 80 Degrees +/- 10Deg
  • Finish: Haze & White
  • Housing Material: Spun Aluminum Reflector
  • Lens Material: Diffused, Textured Polycarbonate Lens
  • Mount Options: Mouse Trap Steel Spring Clips. Install with or without existing frame.
  • Environment Rating: Wet Location
  • IP Rating: IP65
  • Average Life: 50000 hrs
  • Warranty: 5 years
  • Certifications: ETL Listed - Energy Star - IP65 - FCC - Title 24 - Rohs - Wet Location - TAA
  • Country of Origin: Cambodia
  • UPC: 807154892235
  • UNSPSC: 39111515
